Dupertuis Electronique SA

Egaliseur 2 x 15 bandes.

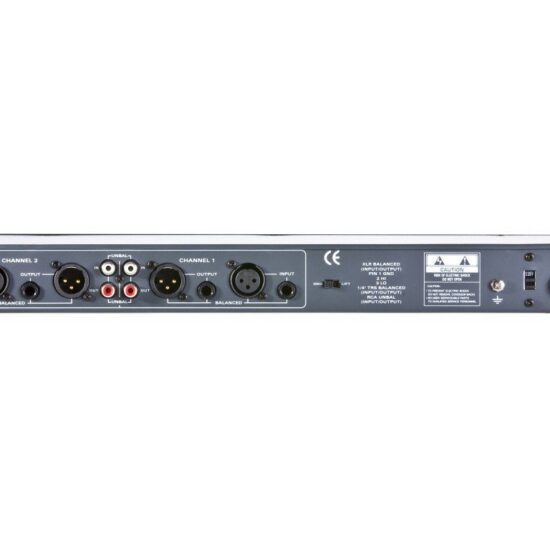

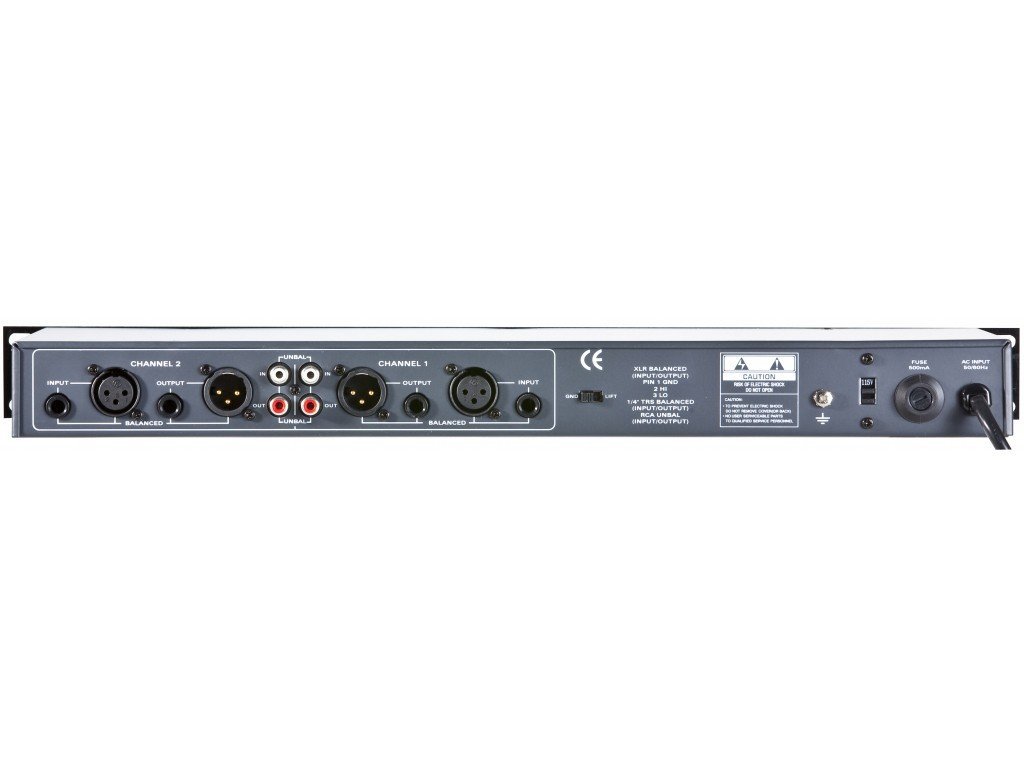

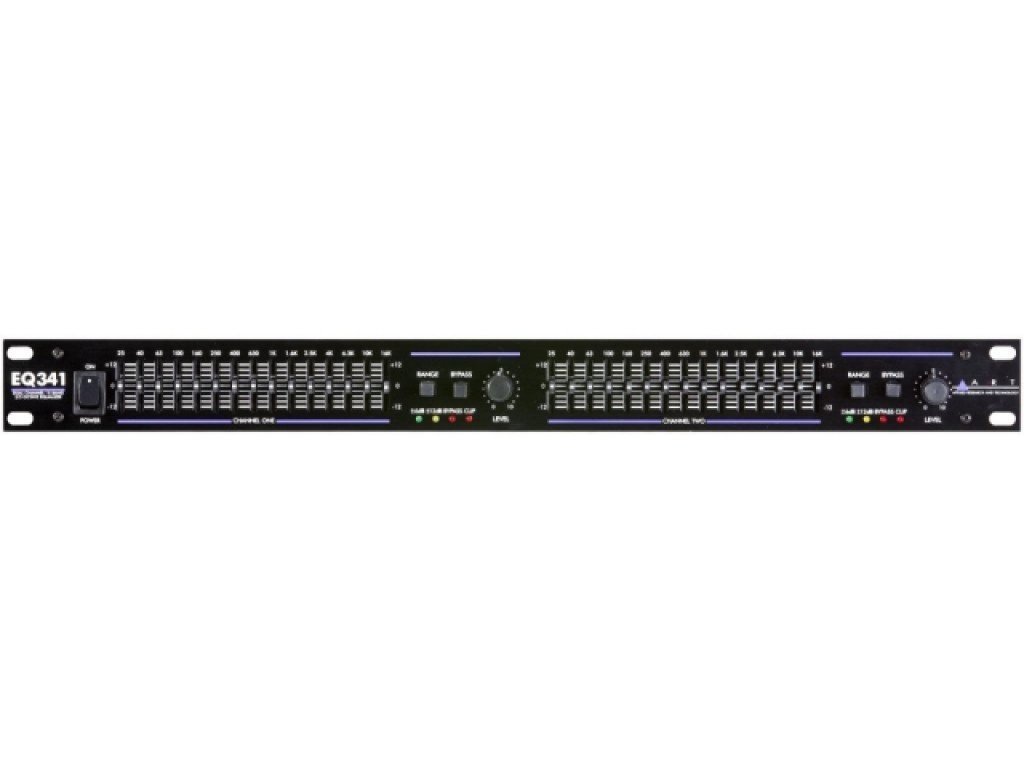

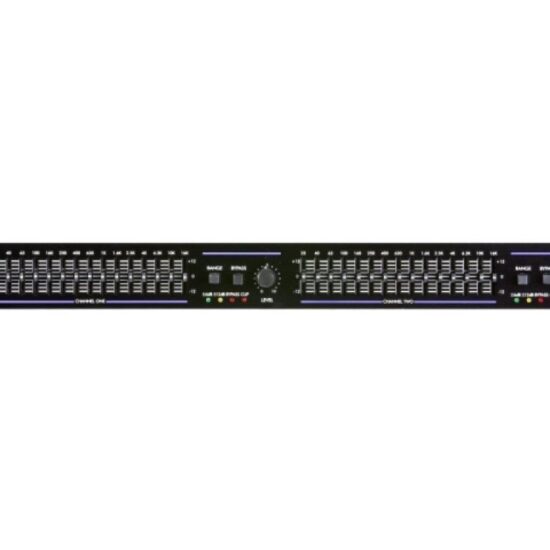

Channel Separation: > 50dBControls:Power On/Off Switch; L/R Filter Range Switch; L/R Bypass Switch; L/R Level Control; Ground Lift SwitchFilter Type: Constant Q – 3% center accuracyFrequency Bands: 2×15, 2/3 octave, ISO spacingFrequency Response: 20Hz to 20kHz, 0.5dBIndicators: 6dB/12dB Range LEDs; Bypass and Clip LEDsInput Impedance: 20k ohms (bal), 15k ohms (unbal)Input/Output Connections: Active balanced XLR and 1/4″ TRS {XLR pin 2/ 1/4″ tip = Hot ( )} Unbalanced RCAMaximum Input Level: 22dBmMaximum Output Level: 18dBm (bal), 22dBm (unbal)Power Consumption: 12 wattsRange: /-6dB or /-12dB selectableSignal to Noise Ratio: -94dBSlider Travel: 20mm w/ positive center detentTotal Harmonic Distortion: 0.0001Dimensions: 1.75″H x 19″W x 8.5″DWeight: 4.5lbs (2.5kg)
