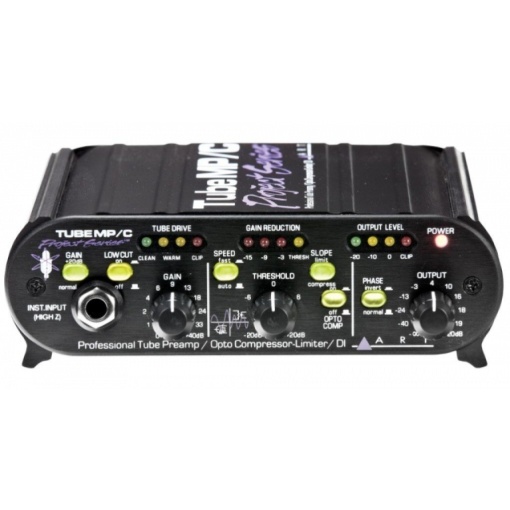

ART Tube MP/C

Le TubeMP/C est le préampli Mic/Ligne/instrument a tube (12AX7a) permettant d’améliorer le signal en amont d’une table de mixage ou d’un systeme d’enregistrement. Comprenant un compresseur optique et la technologie Vactrol délivrant une compression plus transparente et neutre, il peut être être utilisé également comme DI.
CMMR: > 60 dB @ max gain
Equivalent Input Noise: -128dBu typical (“A” wtd., Shorted XLR balanced input, gain @ max)Frequency Response: 30 Hz – 60 kHz /- 1 dB balanced output, 20 Hz – 60 kHz /- 1dB 1/4″ outputInput Impedance: 1M Ohms 1/4″ input, 5K Ohms XLR inputInput/Output ConnectionsInput: XLR balanced or 1/4″ balanced.Output: 1/4″ unbalanced XLR balanced, transformer isolated.Maximum Gain: 80 dB (balanced in-out, 64dB (unbalanced input, balanced output)Maximum Input Level: unbalanced (Inst): 15 dBu, balancd (mic): 10 dBuMaximum Output Level: 19 dBu (Line mode)Output Impedance XLR: <600 Ohms, 1/4″: <300 OhmsLow Cut Filter: -3 dB @ 70 Hz, 6dB/OctavePhantom Power: Switch selectable, 48Volts DC, filtered, current limitedChassis Type: All aluminum black anodized with integral rubber sidesPower Requirements: 9VAC @ 1000mA (external)Attack Time: <1 ms (limit), 20 ms (comp.)Release Time: 150ms (fast), 20ms – 3s Program dependant (Auto)Total Harmonic Distortion: <0.1% @ max gainTube Type: Hand selected 12AX7aCompressor Slope: 2:1 (Comp.) / 11:1 (Limit)Dimensions: 1.75″H x 5.9″ W x 6.5″ D (44.5mm x 150mm x 165mm)Weight: 2.9 lbs (1.32 kg)Notes: 0dBu = 0.775V rmsWeight includes power supply and packaging
