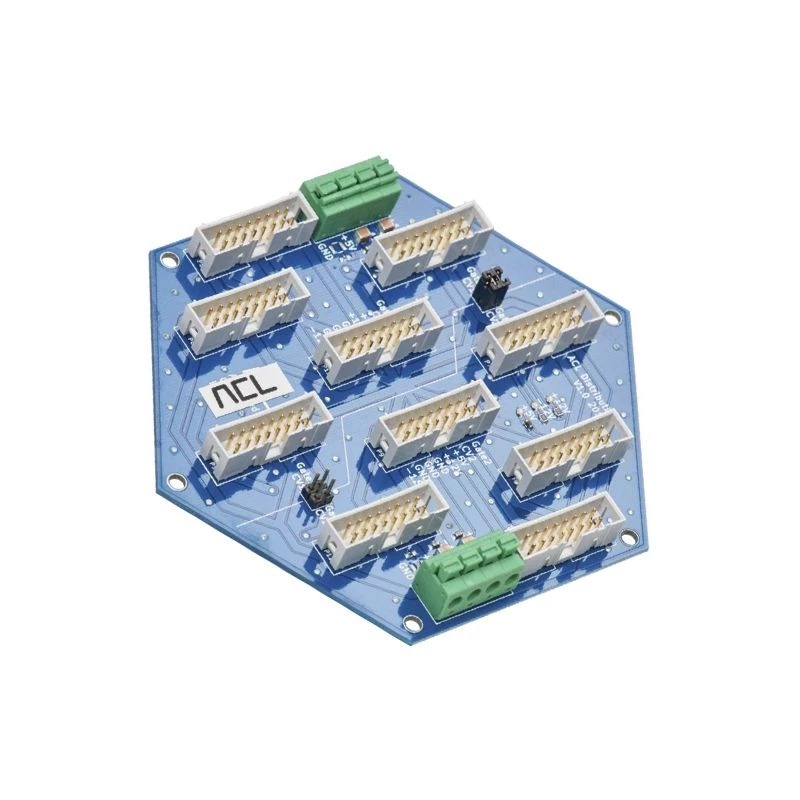

ACL Power Distribution Board:
Bus board with low impedance.
Decoupled 12 V and -12 V rails.
A star-shaped distribution system guarantees that all modules are powered equally. Close to no crosstalk.
Ten module connectors (per bus board).
Several bus boards can be connected to a Lo Noise PSU
Two separate CV / gate channels per bus board. – Can be interconnected via jumpers.
