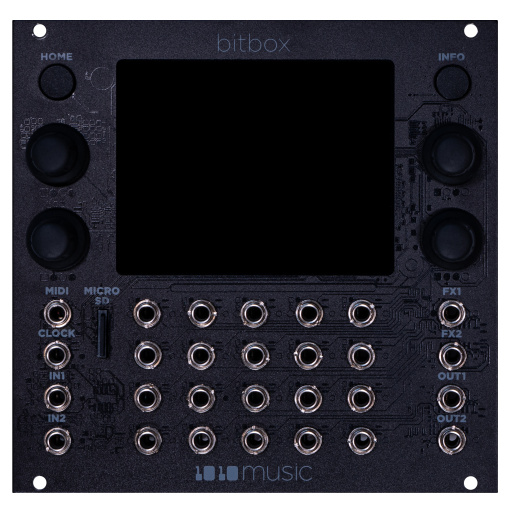

1010 Music Bitbox mk2 – Intuitive Sampling Module Noir

Next Generation Sampling Module for Eurorack
Bitbox mk2 is a follow up to our successful bitbox module.  Do more with bitbox mk2’s more powerful processor and improved touch screen.  This module has all of the features of the original bitbox and adds effects and mixing capabilities that take advantage of the faster and more powerful processor.
Features

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording
Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization

Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode — no need to look up CC numbers

Module Features

Use the 3.5″ diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

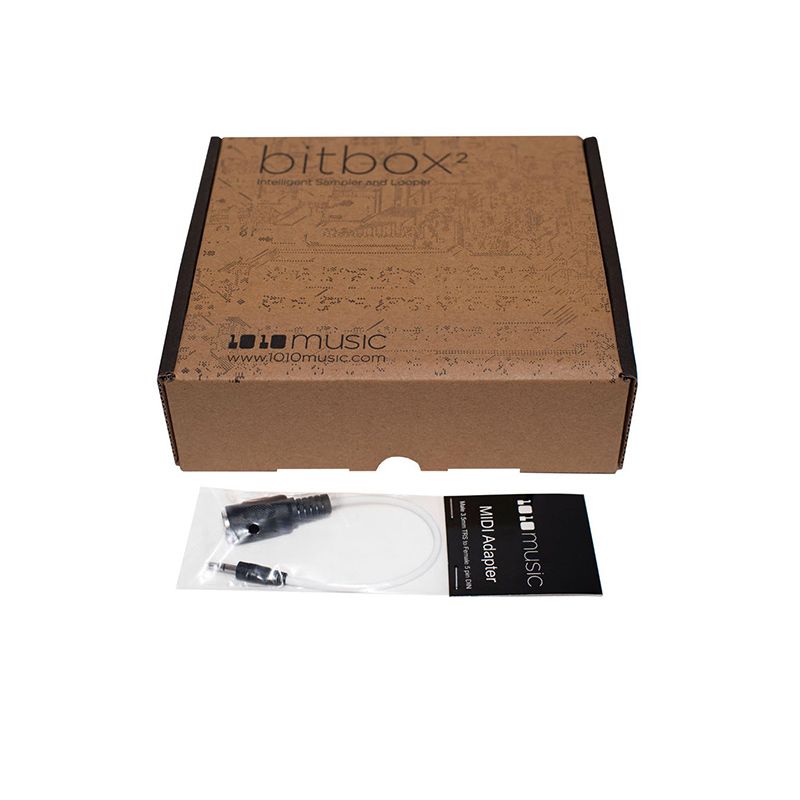

What Is Included

a bitbox mk2 Eurorack module
a microSD card with with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox Quick Start guide
a MIDI Adapter
Firmware Switching and Updates

The bitbox mk2 is a new hardware platform that is similar to the Series 1 platform.  Right now, the only firmware that can run on the bitbox mk2 is the bitbox firmware.  We intend to make the synthbox and fxbox firmware available for the bitbox mk2 hardware in the future. Bitbox mk2 firmware updates will be available from forum.1010music.com.
Technical Specifications

Supports 1 and 2 channel WAV files with 16, 24 or 32-bit resolution at any sample rate (48kHz preferred)
26 HP
5.25″ x 5″x 1.75″
12V: 400mA -12V: 0mA 5V: 0mA 24-bit ADC and DAC
