AuzaAudio Wave Packets

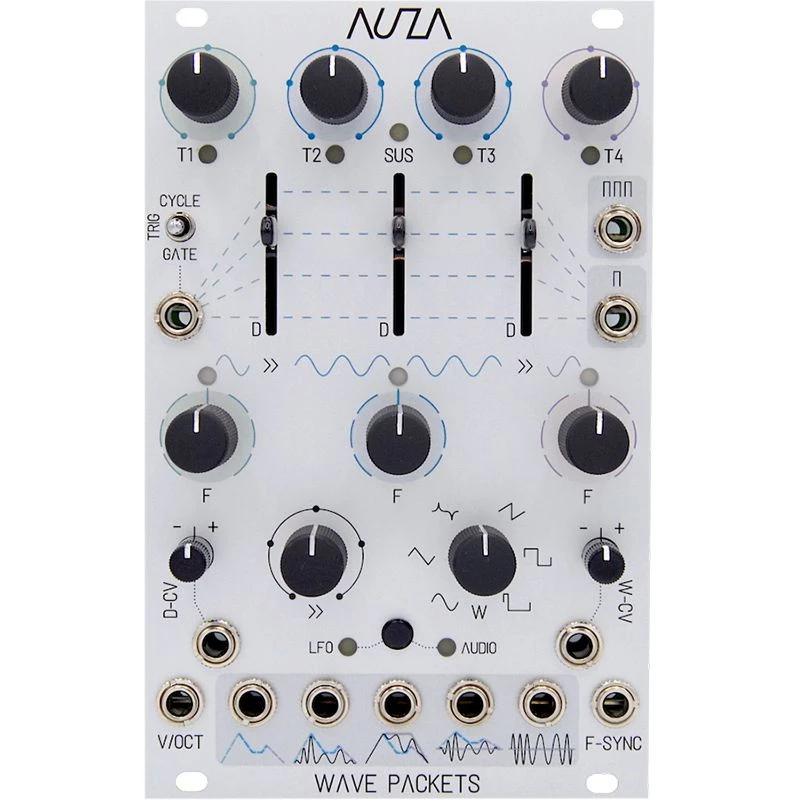

Wave Packets is the first Eurorack module from design team Auza. Capable of generating complex envelopes, modulation signals and audio,
Enveloped actions. Dynamic oscillations.
Bursts of energy. Capsulated audio.
CHF 329.00
Livraison par poste prioritaire
Garantie Fabriquant
Show Room à Lausanne
Description
Ability to design novel control voltage shapes, or use as an audio source
5 simultaneously utilisable outputs with distinct models – 3 unipolar, 2 bipolar
24-bit wavetable audio oscillator, voltage-precise LFO
Continuous wave shape morphing, including PWM and skewable exponential in to sawtooth
Contour function drawn from 3 slider controls
Traverses through 3 frequencies with glide control
Colour-frequency representation LEDs
4 time stages, with LED indication, each adjustable between 0s (skip) to 10s, and optional sustain stage
‘Linked’ stage time mode which allows the ability to sync stage times to the oscillator period
Ability to stretch and shrink the overall wave packet using V/OCT in linked mode
Various excitation/ trigger options, including gated, trigger, cycle, pingable-stages cycle, and free-running modes
Ping input frequency/ rate control, with multiplication/ division or offset controls
EOS, EOC outputs
Accurate 16-bit tracking V/OCT input, +-9V range. -V useful for general FM
Depth and wave shape CV inputs, running at oversampled audio rates
Skiff-friendly 25mm, 16HP module
Informations complémentaires
| Poids | 0.000000 kg |
|---|---|
| Dimensions | 0.000000 × 0.000000 × 0.000000 cm |
